7 watt LED Downlight Retrofit; 4"; 5000K; 120 volts; Dimmable : X3MR3

No Image
Available

Image may not reflect selected features

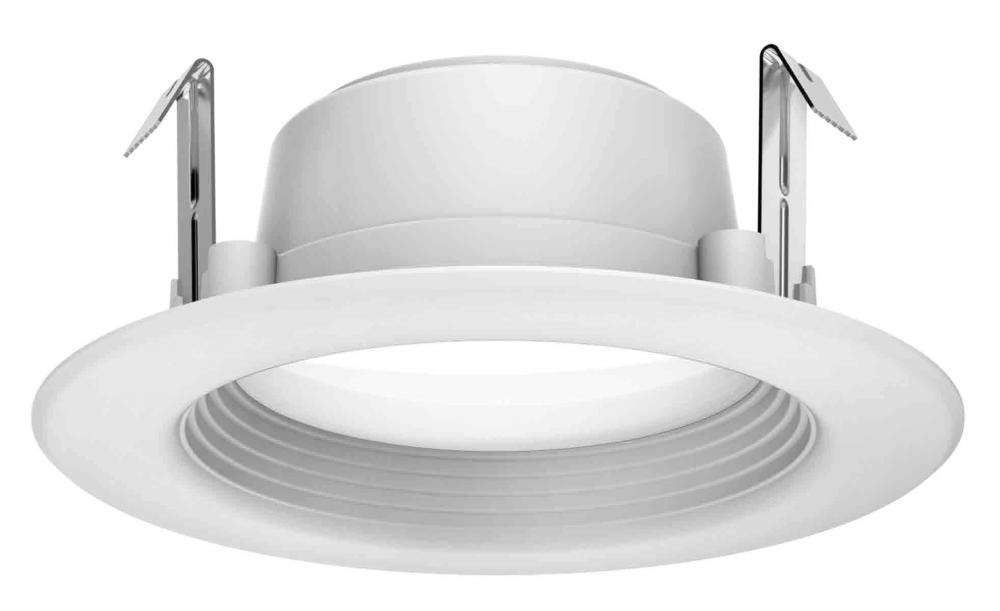

7 watt LED Downlight Retrofit; 4"; 5000K; 120 volts; Dimmable (X3MR3)

7 watt LED Downlight Retrofit; 4"; 5000K; 120 volts; Dimmable

Product Specification

Item #

X3MR3

Dimensions

Height: 2.88"

Width: 5.31"

Additional product details

Internal #

X3MR3

Category

Recessed

Sub Category

Retrofits

Style

Utility

Additional Info

Trim material is Thermo Plastic; Trim color is White

Bulb Hours

50000

Bulb Kelvin

Natural Light

Bulb Shape

Integrated LED

Bulb Type

LED

Diameter

5.31

Dimmable

Yes-Dimmable

Harmonized Codes

9405.42.6000

Lumens

600L

Ship Carton Height

5.91

Ship Carton Length

5.51

Ship Carton Width

2.69

Warranty

5 Year Limited - Fixtures

Amps

0.058A

ANSI Base

E26 Adapter

Beam Spread

CA Prop-65

Lead

Can Size

4 in.

Carton Cubic Feet

0.0507

Cartons Per Unit

CCT Selectable

CEC

T20 Listed

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Connection

Direct Wired

Country Of Origin

China

CRI

90+

Dimmable Down To

100 to 20 percent

Dimming Type

Forward Phase or Reverse Phase or Phase Selectable

Efficacy

85.71 LPW

FCC Compliant

Yes

Feature 1

Natural light

Feature 2

Wet rated for indoor use

Feature 3

H:2.88 D:5.31

Feature 4

Dimmable

Feature 5

Round, White and Frosted Finish

Finish Family

White

Fixture shape

Round

IC Rated

Yes

Incandescent Equivalent

50W

Indoor Outdoor

Indoor

JA8 Compliant

Lens Finish

Frost

Lens Material

Plastic (PS)

Long Description

SATCO NUVO's S39716 7-watt, 4 inch LED retrofit downlight, offers natural light and a 90 degree beam angle. This LED downlight is an energy efficient lighting solution for offices, retail spaces, and hospitality applications. Dimmable and long lasting,

Material

Thermo Plastic (PBT)

Mounting Procedure

Ceiling

Operating Frequency

60Hz

Operating Temprature

-20C (-4F) to +40C (+104F)

Order In Multiples Of

Pack Type

Box

Power Factor

0.74

Quantity In Pack

R9 Value

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

SATCO NUVO's 7-watt, 4 inch LED retrofit downlight, offers natural light and a 90 degree beam angle. This LED downlight is an energy efficient lighting solution for offices, retail spaces, and hospitality applications. Dimmable and long lasting, this d

Safety Listing

cULus - Classified;cULus - Certified

SDS class

LED_Fixture

Short Description

7WLED/RDL/4/50K/120V

Temperature (CCT)

5000K

Title 20 Compliant

Yes

Title 24 Compliant

Trim Color

White

Wattage Selectable

Weight Lb.

0.33

Finish

Additional options that would change other selections
