14"- LED Flush with White Acrylic Lens - White Finish - 50 Percent Dimming- 120-277V : A31JP

No Image
Available

Image may not reflect selected features

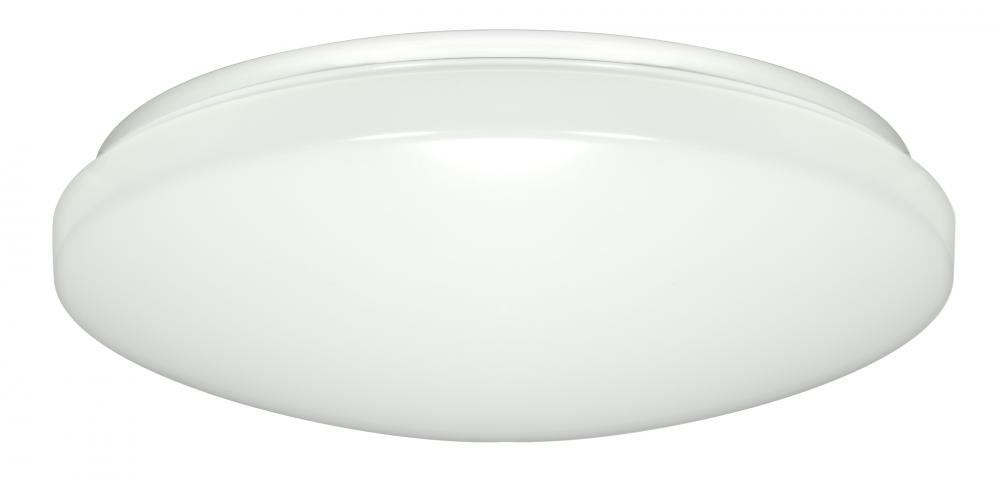

14"- LED Flush with White Acrylic Lens - White Finish - 50 Percent Dimming- 120-277V (A31JP)

14 in.; Flush Mounted LED Light; Fixture; White Finish; 50 Percent Dimming; 120-277V

Product Specification

Item #

A31JP

Dimensions

Height: 3.50"

Width: 14.00"

Additional product details

Internal #

A31JP

Category

Close-to-Ceiling

Sub Category

Utility

Style

Utility

Avg Rated Hours

40000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

Warm White

Diameter

Dimmable

Yes-Dimmable

Each Height

14.25

Each Length

14.25

Each Width

4.13

Lumens

970L

Tariff Code

9405.11.8010

Warranty

3-Years

Amps

0.146-0.063A

ANSI Base

Integrated

BAA Compliant

CA Prop-65

Lead

CCT Selectable

CEC

T20 Exempt - Fixtures Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Closet Rated

Yes

Connection

Direct Wired

Country Of Origin

China

CRI

90+

Dimmable Down To

100 to 20 percent

Dimmable Function

Bi-Level Dimmable

Dimming Type

Forward Phase or Reverse Phase

Each Cube

0.4853

Each Quantity

Efficacy

55.43 LPW

FCC Compliant

Yes

Finish Family

White

Fixture shape

Round

Incandescent Equivalent

75W

Indoor Outdoor

Indoor

JA8 Compliant

Mounting Procedure

Ceiling

NEC Compliance

Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)

Order In Multiples Of

Pack Type

Color Box

Photocell

Has Vacancy Sensor

Power Factor

0.97

Quantity In Pack

R9 Value

Replaceable Light Source

RoHS Compliant

Yes

Safety Listing

cETLus - Listed

SDS class

LED_Fixture

Sensor Occupancy or Vacancy

Vacancy

Sensor Operation

Step-down operation: Unoccupied, 50% light. Occupied, 100% light (Always on)

Short Description

14" WHITE ACRYLIC LED

Sloped Ceiling Compatible

Yes

Temperature (CCT)

3000K

Title 20 Compliant

Exempt

Title 24 Compliant

Wattage Selectable

Weight Lb.

2.66

Finish

Additional options that would change other selections
